FF127減速機重量：FF127減速機重量702公斤，F(xiàn)F127減速機帶電機重量分別如下

FF127減速機帶7.5KW電機重量775公斤，F(xiàn)F127減速機帶11KW電機重量817公斤，F(xiàn)F127減速機帶15KW電機重量837公斤，F(xiàn)F127減速機帶18.5KW電機重量874公斤，F(xiàn)F127減速機帶22KW電機重量887公斤，F(xiàn)F127減速機帶30KW電機重量955公斤，F(xiàn)F127減速機帶37KW電機重量1002公斤，F(xiàn)F127減速機帶45KW電機重量1037公斤，F(xiàn)F127減速機帶55KW電機重量1122公斤，F(xiàn)F127減速機帶75KW電機重量1262公斤，F(xiàn)F127減速機帶90KW電機重量1372公斤。

FF127減速機加油量：可加合成油

FF127減速機M2安裝方式加55.5升，F(xiàn)F127減速機M1安裝方式加41.5升，F(xiàn)F127減速機M3安裝方式加34升，F(xiàn)F127減速機M4安裝方式加63升，F(xiàn)F127減速機M5安裝方式加46.5升，F(xiàn)F127減速機M6安裝方式加49升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式方式時，您必須根據改變后的安裝方式方式相應調整加注潤滑劑。上述中列出了安裝方式方式M1-M6的減速機相應的標準參考潤滑油注入量值。

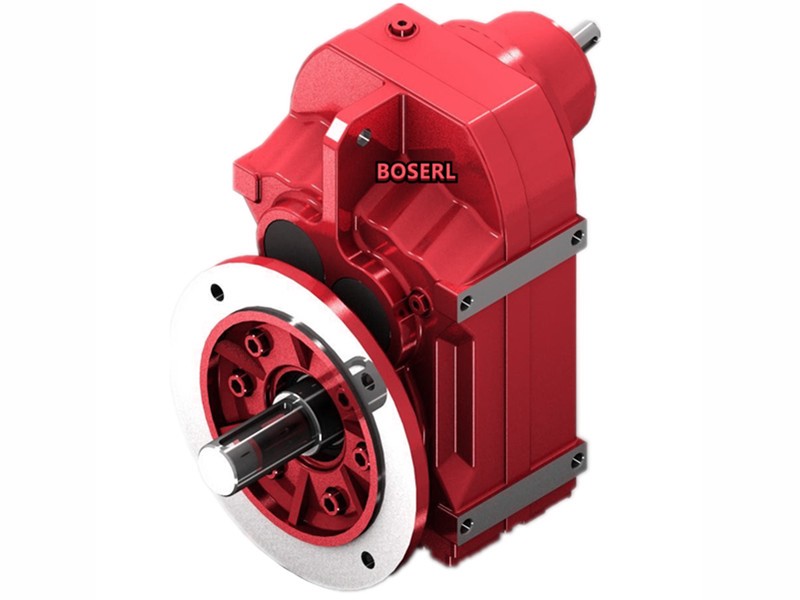

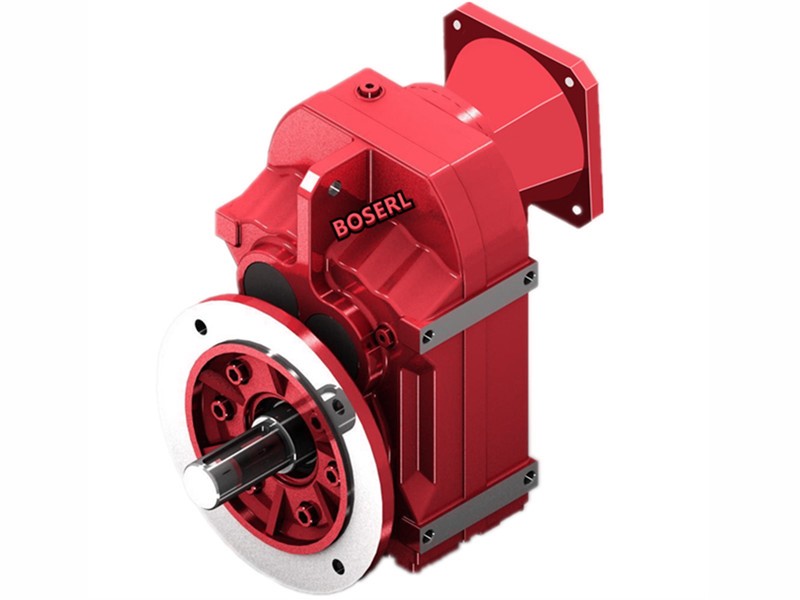

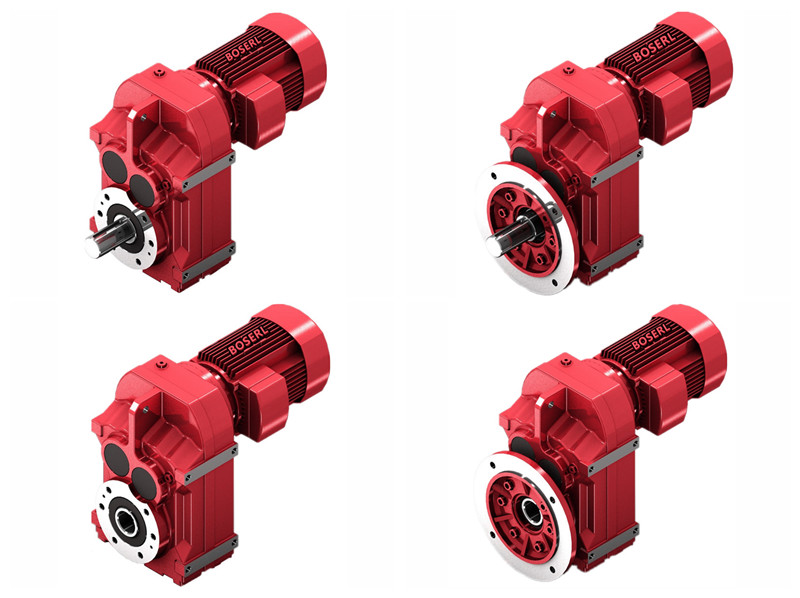

FF127減速機實物圖：圖一為FF127立式法蘭軸輸出平行軸斜齒輪減速機，圖二F127底腳安裝方式軸輸出平行軸減速機，圖三為FA127臥式孔輸出平行軸減速機，圖四為FAF127立式法蘭孔輸出平行軸斜齒輪減速機。

FF127減速機型號表示方法：

FF127減速機型號結構FF127-B75KW-4P-減速比-安裝方式方式-接線盒位置。

FF127減速機性能參數表結構說明：HF手動釋放裝置帶自鎖功能，F(xiàn)F127、F127、FA127、FAF127減速機機座號，HR手動釋放裝置，TF電機熱保護裝置，N代表徑向負荷，KW代表電機功率，1、min代表輸出轉數，Nm代表輸出扭矩。齒輪減速機

FF127減速機電機接線盒方位說明：本頁附件選型樣本視圖為M1安裝方式，方向為:從電機尾部的風罩向前看?？商峁㏑(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供?？商峁㏒和N兩種進線方位，其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。

FF127減速機參數：

FF127減速機輸出轉數8.2轉，9.1轉，11轉，12轉，14轉，16轉，19轉，20轉，22轉，25轉，29轉，33轉，38轉，45轉，55轉，52轉，57轉，65轉，74轉，86轉，96轉，112轉，137轉，158轉，178轉，206轉，254轉，299轉。（以上轉數均為四級電機算出的，可用2P、6P、8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為F系列減速機的輸入）

FF127減速機電機可帶直流、變頻、剎車、防爆、伺服、交流、三相、單相電機FF127帶7.5KW，F(xiàn)F127帶11KW，F(xiàn)F127帶15KW，F(xiàn)F127帶18.5KW，F(xiàn)F127帶22KW，F(xiàn)F127帶30KW，F(xiàn)F127帶37KW，F(xiàn)F127帶45KW，F(xiàn)F127帶55KW，F(xiàn)F127帶75KW，F(xiàn)F127帶90KW。

FF127減速機輸出扭矩12000N.m，11000N.m，10000N.m，9500N.m，8500N.m，7000N.m，6000N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

FF127減速機減速比1:170，1:153，1:125，1:114，1:98，1:87，1:75，1:70，1:63，1:55，1:48，1:42，1:37，1:31，1:25，1:26，1:24，1:21，1:18，1:16，1:14，1:12，1:10，1:8，1:7，1:6，1:5，1:4。

FF127減速機外形尺寸：輸出軸直徑Φ110+鍵6（可定做），高856*寬530*長634（帶輸出軸）剎車電機減速機

FF127減速機型號：FF127AQA80,FF127AQA100,FF127AQA115,FF127AQA140,FF127AQA160,FF127AQA190,FF127AQH80,FF127AQH100,FF127AQH115,FF127AQH140,FF127AQH160,FF127AQH190,JRTFF127-Y11KW,JRTFF127-Y132M4,JRTFF127-Y15KW,JRTFF127-Y160M4,JRTFF127-Y18.5KW,JRTFF127-Y180M4,JRTFF127-Y200M4,JRTFF127-Y225M4,JRTFF127-Y22KW,JRTFF127-Y250M4,JRTFF127-Y280M4,JRTFF127-Y30KW,JRTFF127-Y37KW,JRTFF127-Y45KW,JRTFF127-Y55KW,JRTFF127-Y7.5KW,JRTFF127-Y75KW,JRTFF127-Y90KW,JRTFF127-YEJ132M4,JRTFF127-YEJ160M4,JRTFF127-YEJ180M4,JRTFF127-YEJ200M4,JRTFF127-YEJ225M4,JRTFF127-YEJ250M4,JRTFF127-YEJ280M4,JRTFF127-YS132M4,JRTFF127-YS160M4,JRTFF127-YS180M4,JRTFF127-YS200M4,JRTFF127-YS225M4,JRTFF127-YS250M4,JRTFF127-YS280M4,JRTFF127-YVP132M4,JRTFF127-YVP160M4,JRTFF127-YVP180M4,JRTFF127-YVP200M4,JRTFF127-YVP225M4,JRTFF127-YVP250M4,JRTFF127-YVP280M4,JRTFF127-YVPEJ132M4,JRTFF127-YVPEJ160M4,JRTFF127-YVPEJ180M4,JRTFF127-YVPEJ200M4,JRTFF127-YVPEJ225M4,JRTFF127-YVPEJ250M4,JRTFF127-YVPEJ280M4,EWFF127-Y11KW,EWFF127-Y132M4,EWFF127-Y15KW,EWFF127-Y160M4,EWFF127-Y18.5KW,EWFF127-Y180M4,EWFF127-Y200M4,EWFF127-Y225M4,EWFF127-Y22KW,EWFF127-Y250M4,EWFF127-Y280M4,EWFF127-Y30KW,EWFF127-Y37KW,EWFF127-Y45KW,EWFF127-Y55KW,EWFF127-Y7.5KW,EWFF127-Y75KW,EWFF127-Y90KW,EWFF127-YEJ132M4,EWFF127-YEJ160M4,EWFF127-YEJ180M4,EWFF127-YEJ200M4,EWFF127-YEJ225M4,EWFF127-YEJ250M4,EWFF127-YEJ280M4,EWFF127-YS132M4,EWFF127-YS160M4,EWFF127-YS180M4,EWFF127-YS200M4,EWFF127-YS225M4,EWFF127-YS250M4,EWFF127-YS280M4,EWFF127-YVP132M4,EWFF127-YVP160M4,EWFF127-YVP180M4,EWFF127-YVP200M4,EWFF127-YVP225M4,EWFF127-YVP250M4,EWFF127-YVP280M4,EWFF127-YVPEJ132M4,EWFF127-YVPEJ160M4,EWFF127-YVPEJ180M4,EWFF127-YVPEJ200M4,EWFF127-YVPEJ225M4,EWFF127-YVPEJ250M4,EWFF127-YVPEJ280M4,SLFF127-Y11KW,SLFF127-Y132M4,SLFF127-Y15KW,SLFF127-Y160M4,SLFF127-Y18.5KW,SLFF127-Y180M4,SLFF127-Y200M4,SLFF127-Y225M4,SLFF127-Y22KW,SLFF127-Y250M4,SLFF127-Y280M4,SLFF127-Y30KW,SLFF127-Y37KW,SLFF127-Y45KW,SLFF127-Y55KW,SLFF127-Y7.5KW,SLFF127-Y75KW,SLFF127-Y90KW,SLFF127-YEJ132M4,SLFF127-YEJ160M4,SLFF127-YEJ180M4,SLFF127-YEJ200M4,SLFF127-YEJ225M4,SLFF127-YEJ250M4,SLFF127-YEJ280M4,SLFF127-YS132M4,SLFF127-YS160M4,SLFF127-YS180M4,SLFF127-YS200M4,SLFF127-YS225M4,SLFF127-YS250M4,SLFF127-YS280M4,SLFF127-YVP132M4,SLFF127-YVP160M4,SLFF127-YVP180M4,SLFF127-YVP200M4,SLFF127-YVP225M4,SLFF127-YVP250M4,SLFF127-YVP280M4,SLFF127-YVPEJ132M4,SLFF127-YVPEJ160M4,SLFF127-YVPEJ180M4,SLFF127-YVPEJ200M4,SLFF127-YVPEJ225M4,SLFF127-YVPEJ250M4,SLFF127-YVPEJ280M4,DSZFF127-Y11KW,DSZFF127-Y132M4,DSZFF127-Y15KW,DSZFF127-Y160M4,DSZFF127-Y18.5KW,DSZFF127-Y180M4,DSZFF127-Y200M4,DSZFF127-Y225M4,DSZFF127-Y22KW,DSZFF127-Y250M4,DSZFF127-Y280M4,DSZFF127-Y30KW,DSZFF127-Y37KW,DSZFF127-Y45KW,DSZFF127-Y55KW,DSZFF127-Y7.5KW,DSZFF127-Y75KW,DSZFF127-Y90KW,DSZFF127-YEJ132M4,DSZFF127-YEJ160M4,DSZFF127-YEJ180M4,DSZFF127-YEJ200M4,DSZFF127-YEJ225M4,DSZFF127-YEJ250M4,DSZFF127-YEJ280M4,DSZFF127-YS132M4,DSZFF127-YS160M4,DSZFF127-YS180M4,DSZFF127-YS200M4,DSZFF127-YS225M4,DSZFF127-YS250M4,DSZFF127-YS280M4,DSZFF127-YVP132M4,DSZFF127-YVP160M4,DSZFF127-YVP180M4,DSZFF127-YVP200M4,DSZFF127-YVP225M4,DSZFF127-YVP250M4,DSZFF127-YVP280M4,DSZFF127-YVPEJ132M4,DSZFF127-YVPEJ160M4,DSZFF127-YVPEJ180M4,DSZFF127-YVPEJ200M4,DSZFF127-YVPEJ225M4,DSZFF127-YVPEJ250M4,DSZFF127-YVPEJ280M4,BFF127-Y11KW,BFF127-Y132M4,BFF127-Y15KW,BFF127-Y160M4,BFF127-Y18.5KW,BFF127-Y180M4,BFF127-Y200M4,BFF127-Y225M4,BFF127-Y22KW,BFF127-Y250M4,BFF127-Y280M4,BFF127-Y30KW,BFF127-Y37KW,BFF127-Y45KW,BFF127-Y55KW,BFF127-Y7.5KW,BFF127-Y75KW,BFF127-Y90KW,BFF127-YEJ132M4,BFF127-YEJ160M4,BFF127-YEJ180M4,BFF127-YEJ200M4,BFF127-YEJ225M4,BFF127-YEJ250M4,BFF127-YEJ280M4,BFF127-YS132M4,BFF127-YS160M4,BFF127-YS180M4,BFF127-YS200M4,BFF127-YS225M4,BFF127-YS250M4,BFF127-YS280M4,BFF127-YVP132M4,BFF127-YVP160M4,BFF127-YVP180M4,BFF127-YVP200M4,BFF127-YVP225M4,BFF127-YVP250M4,BFF127-YVP280M4,BFF127-YVPEJ132M4,BFF127-YVPEJ160M4,BFF127-YVPEJ180M4,BFF127-YVPEJ200M4,BFF127-YVPEJ225M4,BFF127-YVPEJ250M4,BFF127-YVPEJ280M4,GFF127-Y11KW,GFF127-Y132M4,GFF127-Y15KW,GFF127-Y160M4,GFF127-Y18.5KW,GFF127-Y180M4,GFF127-Y200M4,GFF127-Y225M4,GFF127-Y22KW,GFF127-Y250M4,GFF127-Y280M4,GFF127-Y30KW,GFF127-Y37KW,GFF127-Y45KW,GFF127-Y55KW,GFF127-Y7.5KW,GFF127-Y75KW,GFF127-Y90KW,GFF127-YEJ132M4,GFF127-YEJ160M4,GFF127-YEJ180M4,GFF127-YEJ200M4,GFF127-YEJ225M4,GFF127-YEJ250M4,GFF127-YEJ280M4,GFF127-YS132M4,GFF127-YS160M4,GFF127-YS180M4,GFF127-YS200M4,GFF127-YS225M4,GFF127-YS250M4,GFF127-YS280M4,GFF127-YVP132M4,GFF127-YVP160M4,GFF127-YVP180M4,GFF127-YVP200M4,GFF127-YVP225M4,GFF127-YVP250M4,GFF127-YVP280M4,GFF127-YVPEJ132M4,GFF127-YVPEJ160M4,GFF127-YVPEJ180M4,GFF127-YVPEJ200M4,GFF127-YVPEJ225M4,GFF127-YVPEJ250M4,GFF127-YVPEJ280M4,FCF127-Y11KW,FCF127-Y132M4,FCF127-Y15KW,FCF127-Y160M4,FCF127-Y18.5KW,FCF127-Y180M4,FCF127-Y200M4,FCF127-Y225M4,FCF127-Y22KW,FCF127-Y250M4,FCF127-Y280M4,FCF127-Y30KW,FCF127-Y37KW,FCF127-Y45KW,FCF127-Y55KW,FCF127-Y7.5KW,FCF127-Y75KW,FCF127-Y90KW,FCF127-YEJ132M4,FCF127-YEJ160M4,FCF127-YEJ180M4,FCF127-YEJ200M4,FCF127-YEJ225M4,FCF127-YEJ250M4,FCF127-YEJ280M4,FCF127-YS132M4,FCF127-YS160M4,FCF127-YS180M4,FCF127-YS200M4,FCF127-YS225M4,FCF127-YS250M4,FCF127-YS280M4,FCF127-YVP132M4,FCF127-YVP160M4,FCF127-YVP180M4,FCF127-YVP200M4,FCF127-YVP225M4,FCF127-YVP250M4,FCF127-YVP280M4,FCF127-YVPEJ132M4,FCF127-YVPEJ160M4,FCF127-YVPEJ180M4,FCF127-YVPEJ200M4,FCF127-YVPEJ225M4,FCF127-YVPEJ250M4,FCF127-YVPEJ280M4,MTPF127-Y11KW,MTPF127-Y132M4,MTPF127-Y15KW,MTPF127-Y160M4,MTPF127-Y18.5KW,MTPF127-Y180M4,MTPF127-Y200M4,MTPF127-Y225M4,MTPF127-Y22KW,MTPF127-Y250M4,MTPF127-Y280M4,MTPF127-Y30KW,MTPF127-Y37KW,MTPF127-Y45KW,MTPF127-Y55KW,MTPF127-Y7.5KW,MTPF127-Y75KW,MTPF127-Y90KW,MTPF127-YEJ132M4,MTPF127-YEJ160M4,MTPF127-YEJ180M4,MTPF127-YEJ200M4,MTPF127-YEJ225M4,MTPF127-YEJ250M4,MTPF127-YEJ280M4,MTPF127-YS132M4,MTPF127-YS160M4,MTPF127-YS180M4,MTPF127-YS200M4,MTPF127-YS225M4,MTPF127-YS250M4,MTPF127-YS280M4,MTPF127-YVP132M4,MTPF127-YVP160M4,MTPF127-YVP180M4,MTPF127-YVP200M4,MTPF127-YVP225M4,MTPF127-YVP250M4,MTPF127-YVP280M4,MTPF127-YVPEJ132M4,MTPF127-YVPEJ160M4,MTPF127-YVPEJ180M4,MTPF127-YVPEJ200M4,MTPF127-YVPEJ225M4,MTPF127-YVPEJ250M4,MTPF127-YVPEJ280M4,WXFF127-WSS11KW,WXFF127-WSS132M4,WXFF127-WSS15KW,WXFF127-WSS160M4,WXFF127-WSS18.5KW,WXFF127-WSS180M4,WXFF127-WSS200M4,WXFF127-WSS225M4,WXFF127-WSS22KW,WXFF127-WSS250M4,WXFF127-WSS280M4,WXFF127-WSS30KW,WXFF127-WSS37KW,WXFF127-WSS45KW,WXFF127-WSS55KW,WXFF127-WSS7.5KW,WXFF127-WSS75KW,WXFF127-WSS90KW,WXFF127-WSSB132M4,WXFF127-WSSB160M4,WXFF127-WSSB180M4,WXFF127-WSSB200M4,WXFF127-WSSB225M4,WXFF127-WSSB250M4,WXFF127-WSSB280M4,WXFF127-WSSVP132M4,WXFF127-WSSVP160M4,WXFF127-WSSVP180M4,WXFF127-WSSVP200M4,WXFF127-WSSVP225M4,WXFF127-WSSVP250M4,WXFF127-WSSVP280M4,WXFF127-WSSVPB132M4,WXFF127-WSSVPB160M4,WXFF127-WSSVPB180M4,WXFF127-WSSVPB200M4,WXFF127-WSSVPB225M4,WXFF127-WSSVPB250M4,WXFF127-WSSVPB280M4。

FF127減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://zzhhdz.com/product/list-ffxiliejiansuji-cn.html

推薦類似型號：F127減速機
