KH187減速機重量：KH187減速機重量1697公斤，KH187減速機與電機重量分別如下

KH187減速機與18.5KW電機重量1869公斤，KH187減速機與22KW電機重量1882公斤，KH187減速機與30KW電機重量1951公斤，KH187減速機與37KW電機重量1997公斤，KH187減速機與45KW電機重量2032公斤，KH187減速機與55KW電機重量2117公斤，KH187減速機與75KW電機重量2257公斤，KH187減速機與90KW電機重量2367公斤，KH187減速機與110KW電機重量2617公斤，KH187減速機與132KW電機重量2747公斤，KH187減速機與160KW電機重量2857公斤，KH187減速機與200KW電機重量2937公斤。直角減速機

KH187減速機加油量：可加齒輪油

KH187減速機M3安裝加167L，KH187減速機M2方式安裝加152L，KH187減速機M1方式安裝加53L，KH187減速機M4方式安裝加200L，KH187減速機M5方式安裝加143L，KH187減速機M6方式安裝加143L。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時，您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

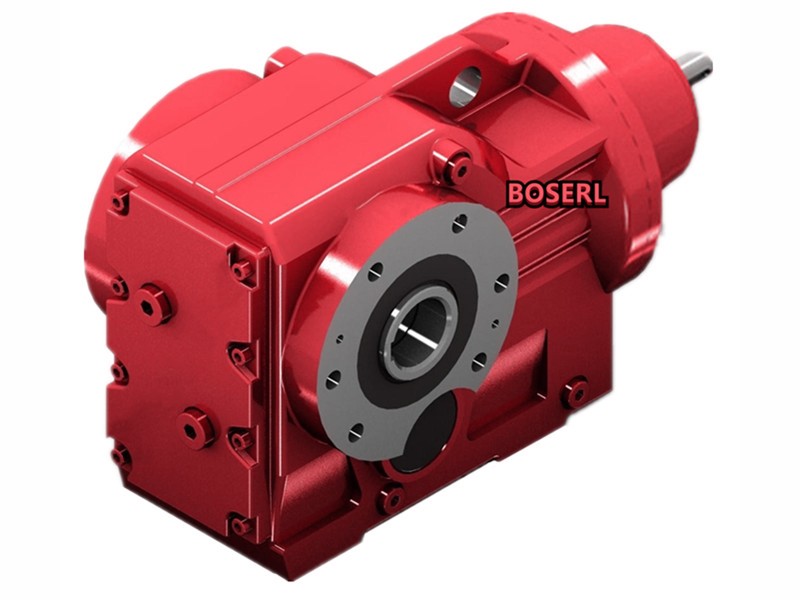

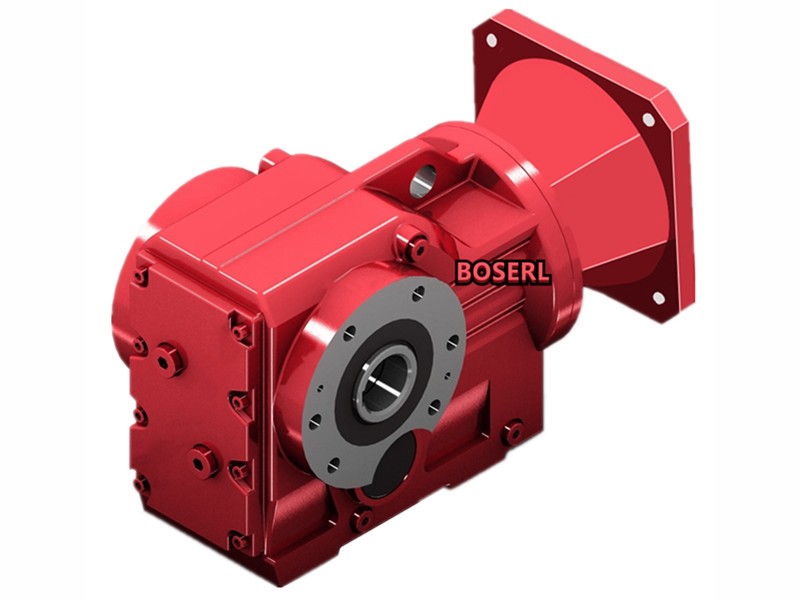

KH187減速機實物圖：圖一為KH187臥式安裝空心軸螺旋錐齒輪減速電機，圖二K187臥式安裝螺旋錐齒輪減速電機，圖三為KA187立式安裝孔心軸輸出螺旋錐齒輪減速電機，圖四為KAF187立式安裝直角空心軸螺旋錐齒輪減速機。

KH187減速機型號表示方法：

KH187減速機型號結構KH187-B90KW-4P-減速比-安裝方式-接線盒位置。

KH187減速機性能參數表結構說明：C防雨罩，V強制冷卻風扇，RS逆止器，Input Configuration代表輸入與置，TF電機熱保護裝置，KH187、K187、KA187、KAF187減速機機座號，N代表徑向負荷，HR手動釋放裝置，1，min代表輸出轉數，HF手動釋放裝置帶自鎖功能。

KH187減速機電機接線盒方位說明：本頁附件選型目錄視圖為M1安裝，方向為:從電機尾部的風罩向前看?？商峁㏑(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位?？商峁㏒和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。

KH187減速機參數：

KH187減速機減速比179.86比，165.21比，144.59比，129.69比，112.60比，102.16比，88比，73.96比，64.04比，53.36比，45.5比，42.51比，38.57比，33.23比，27.92比，24.18比，20.15比，17.18比。

KH187減速機輸出轉數7.8轉，8.5轉，9.7轉，11轉，12轉，14轉，16轉，19轉，22轉，26轉，31轉，33轉，36轉，42轉，50轉，58轉，69轉，81轉。（以上轉數均為四級電機算出的，可用2P，6P，8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為K系列減速機的輸入）

KH187減速機電機可與單相，直流，變頻，剎車，防爆，伺服，交流，三相電機KH187與18.5KW，KH187與22KW，KH187與30KW，KH187與37KW，KH187與45KW，KH187與55KW，KH187與75KW，KH187與90KW，KH187與110KW，KH187與132KW，KH187與160KW，KH187與200KW。

KH187減速機輸出扭矩50000N.m，4760N.m，4390N.m，41400N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

KH187減速機安裝尺寸：高942*寬640*長946

KH187減速機型號：KH187AQA80,KH187AQA100,KH187AQA115,KH187AQA140,KH187AQA160,KH187AQA190,KH187AQH80,KH187AQH100,KH187AQH115,KH187AQH140,KH187AQH160,KH187AQH190,JRTKH187-Y110KW,JRTKH187-Y132KW,JRTKH187-Y160KW,JRTKH187-Y18.5KW,JRTKH187-Y180M4,JRTKH187-Y200KW,JRTKH187-Y200M4,JRTKH187-Y225M4,JRTKH187-Y22KW,JRTKH187-Y250M4,JRTKH187-Y280M4,JRTKH187-Y30KW,JRTKH187-Y315M4,JRTKH187-Y37KW,JRTKH187-Y45KW,JRTKH187-Y55KW,JRTKH187-Y75KW,JRTKH187-Y90KW,JRTKH187-YEJ180M4,JRTKH187-YEJ200M4,JRTKH187-YEJ225M4,JRTKH187-YEJ250M4,JRTKH187-YEJ280M4,JRTKH187-YEJ315M4,JRTKH187-YS180M4,JRTKH187-YS200M4,JRTKH187-YS225M4,JRTKH187-YS250M4,JRTKH187-YS280M4,JRTKH187-YS315M4,JRTKH187-YVP180M4,JRTKH187-YVP200M4,JRTKH187-YVP225M4,JRTKH187-YVP250M4,JRTKH187-YVP280M4,JRTKH187-YVP315M4,JRTKH187-YVPEJ180M4,JRTKH187-YVPEJ200M4,JRTKH187-YVPEJ225M4,JRTKH187-YVPEJ250M4,JRTKH187-YVPEJ280M4,JRTKH187-YVPEJ315M4,EWKH187-Y110KW,EWKH187-Y132KW,EWKH187-Y160KW,EWKH187-Y18.5KW,EWKH187-Y180M4,EWKH187-Y200KW,EWKH187-Y200M4,EWKH187-Y225M4,EWKH187-Y22KW,EWKH187-Y250M4,EWKH187-Y280M4,EWKH187-Y30KW,EWKH187-Y315M4,EWKH187-Y37KW,EWKH187-Y45KW,EWKH187-Y55KW,EWKH187-Y75KW,EWKH187-Y90KW,EWKH187-YEJ180M4,EWKH187-YEJ200M4,EWKH187-YEJ225M4,EWKH187-YEJ250M4,EWKH187-YEJ280M4,EWKH187-YEJ315M4,EWKH187-YS180M4,EWKH187-YS200M4,EWKH187-YS225M4,EWKH187-YS250M4,EWKH187-YS280M4,EWKH187-YS315M4,EWKH187-YVP180M4,EWKH187-YVP200M4,EWKH187-YVP225M4,EWKH187-YVP250M4,EWKH187-YVP280M4,EWKH187-YVP315M4,EWKH187-YVPEJ180M4,EWKH187-YVPEJ200M4,EWKH187-YVPEJ225M4,EWKH187-YVPEJ250M4,EWKH187-YVPEJ280M4,EWKH187-YVPEJ315M4,SLKH187-Y110KW,SLKH187-Y132KW,SLKH187-Y160KW,SLKH187-Y18.5KW,SLKH187-Y180M4,SLKH187-Y200KW,SLKH187-Y200M4,SLKH187-Y225M4,SLKH187-Y22KW,SLKH187-Y250M4,SLKH187-Y280M4,SLKH187-Y30KW,SLKH187-Y315M4,SLKH187-Y37KW,SLKH187-Y45KW,SLKH187-Y55KW,SLKH187-Y75KW,SLKH187-Y90KW,SLKH187-YEJ180M4,SLKH187-YEJ200M4,SLKH187-YEJ225M4,SLKH187-YEJ250M4,SLKH187-YEJ280M4,SLKH187-YEJ315M4,SLKH187-YS180M4,SLKH187-YS200M4,SLKH187-YS225M4,SLKH187-YS250M4,SLKH187-YS280M4,SLKH187-YS315M4,SLKH187-YVP180M4,SLKH187-YVP200M4,SLKH187-YVP225M4,SLKH187-YVP250M4,SLKH187-YVP280M4,SLKH187-YVP315M4,SLKH187-YVPEJ180M4,SLKH187-YVPEJ200M4,SLKH187-YVPEJ225M4,SLKH187-YVPEJ250M4,SLKH187-YVPEJ280M4,SLKH187-YVPEJ315M4,DSZKH187-Y110KW,DSZKH187-Y132KW,DSZKH187-Y160KW,DSZKH187-Y18.5KW,DSZKH187-Y180M4,DSZKH187-Y200KW,DSZKH187-Y200M4,DSZKH187-Y225M4,DSZKH187-Y22KW,DSZKH187-Y250M4,DSZKH187-Y280M4,DSZKH187-Y30KW,DSZKH187-Y315M4,DSZKH187-Y37KW,DSZKH187-Y45KW,DSZKH187-Y55KW,DSZKH187-Y75KW,DSZKH187-Y90KW,DSZKH187-YEJ180M4,DSZKH187-YEJ200M4,DSZKH187-YEJ225M4,DSZKH187-YEJ250M4,DSZKH187-YEJ280M4,DSZKH187-YEJ315M4,DSZKH187-YS180M4,DSZKH187-YS200M4,DSZKH187-YS225M4,DSZKH187-YS250M4,DSZKH187-YS280M4,DSZKH187-YS315M4,DSZKH187-YVP180M4,DSZKH187-YVP200M4,DSZKH187-YVP225M4,DSZKH187-YVP250M4,DSZKH187-YVP280M4,DSZKH187-YVP315M4,DSZKH187-YVPEJ180M4,DSZKH187-YVPEJ200M4,DSZKH187-YVPEJ225M4,DSZKH187-YVPEJ250M4,DSZKH187-YVPEJ280M4,DSZKH187-YVPEJ315M4,BKH187-Y110KW,BKH187-Y132KW,BKH187-Y160KW,BKH187-Y18.5KW,BKH187-Y180M4,BKH187-Y200KW,BKH187-Y200M4,BKH187-Y225M4,BKH187-Y22KW,BKH187-Y250M4,BKH187-Y280M4,BKH187-Y30KW,BKH187-Y315M4,BKH187-Y37KW,BKH187-Y45KW,BKH187-Y55KW,BKH187-Y75KW,BKH187-Y90KW,BKH187-YEJ180M4,BKH187-YEJ200M4,BKH187-YEJ225M4,BKH187-YEJ250M4,BKH187-YEJ280M4,BKH187-YEJ315M4,BKH187-YS180M4,BKH187-YS200M4,BKH187-YS225M4,BKH187-YS250M4,BKH187-YS280M4,BKH187-YS315M4,BKH187-YVP180M4,BKH187-YVP200M4,BKH187-YVP225M4,BKH187-YVP250M4,BKH187-YVP280M4,BKH187-YVP315M4,BKH187-YVPEJ180M4,BKH187-YVPEJ200M4,BKH187-YVPEJ225M4,BKH187-YVPEJ250M4,BKH187-YVPEJ280M4,BKH187-YVPEJ315M4,GKH187-Y110KW,GKH187-Y132KW,GKH187-Y160KW,GKH187-Y18.5KW,GKH187-Y180M4,GKH187-Y200KW,GKH187-Y200M4,GKH187-Y225M4,GKH187-Y22KW,GKH187-Y250M4,GKH187-Y280M4,GKH187-Y30KW,GKH187-Y315M4,GKH187-Y37KW,GKH187-Y45KW,GKH187-Y55KW,GKH187-Y75KW,GKH187-Y90KW,GKH187-YEJ180M4,GKH187-YEJ200M4,GKH187-YEJ225M4,GKH187-YEJ250M4,GKH187-YEJ280M4,GKH187-YEJ315M4,GKH187-YS180M4,GKH187-YS200M4,GKH187-YS225M4,GKH187-YS250M4,GKH187-YS280M4,GKH187-YS315M4,GKH187-YVP180M4,GKH187-YVP200M4,GKH187-YVP225M4,GKH187-YVP250M4,GKH187-YVP280M4,GKH187-YVP315M4,GKH187-YVPEJ180M4,GKH187-YVPEJ200M4,GKH187-YVPEJ225M4,GKH187-YVPEJ250M4,GKH187-YVPEJ280M4,GKH187-YVPEJ315M4,KCH187-Y110KW,KCH187-Y132KW,KCH187-Y160KW,KCH187-Y18.5KW,KCH187-Y180M4,KCH187-Y200KW,KCH187-Y200M4,KCH187-Y225M4,KCH187-Y22KW,KCH187-Y250M4,KCH187-Y280M4,KCH187-Y30KW,KCH187-Y315M4,KCH187-Y37KW,KCH187-Y45KW,KCH187-Y55KW,KCH187-Y75KW,KCH187-Y90KW,KCH187-YEJ180M4,KCH187-YEJ200M4,KCH187-YEJ225M4,KCH187-YEJ250M4,KCH187-YEJ280M4,KCH187-YEJ315M4,KCH187-YS180M4,KCH187-YS200M4,KCH187-YS225M4,KCH187-YS250M4,KCH187-YS280M4,KCH187-YS315M4,KCH187-YVP180M4,KCH187-YVP200M4,KCH187-YVP225M4,KCH187-YVP250M4,KCH187-YVP280M4,KCH187-YVP315M4,KCH187-YVPEJ180M4,KCH187-YVPEJ200M4,KCH187-YVPEJ225M4,KCH187-YVPEJ250M4,KCH187-YVPEJ280M4,KCH187-YVPEJ315M4,MTJH187-Y110KW,MTJH187-Y132KW,MTJH187-Y160KW,MTJH187-Y18.5KW,MTJH187-Y180M4,MTJH187-Y200KW,MTJH187-Y200M4,MTJH187-Y225M4,MTJH187-Y22KW,MTJH187-Y250M4,MTJH187-Y280M4,MTJH187-Y30KW,MTJH187-Y315M4,MTJH187-Y37KW,MTJH187-Y45KW,MTJH187-Y55KW,MTJH187-Y75KW,MTJH187-Y90KW,MTJH187-YEJ180M4,MTJH187-YEJ200M4,MTJH187-YEJ225M4,MTJH187-YEJ250M4,MTJH187-YEJ280M4,MTJH187-YEJ315M4,MTJH187-YS180M4,MTJH187-YS200M4,MTJH187-YS225M4,MTJH187-YS250M4,MTJH187-YS280M4,MTJH187-YS315M4,MTJH187-YVP180M4,MTJH187-YVP200M4,MTJH187-YVP225M4,MTJH187-YVP250M4,MTJH187-YVP280M4,MTJH187-YVP315M4,MTJH187-YVPEJ180M4,MTJH187-YVPEJ200M4,MTJH187-YVPEJ225M4,MTJH187-YVPEJ250M4,MTJH187-YVPEJ280M4,MTJH187-YVPEJ315M4,WXKH187-WSS110KW,WXKH187-WSS132KW,WXKH187-WSS160KW,WXKH187-WSS18.5KW,WXKH187-WSS180M4,WXKH187-WSS200KW,WXKH187-WSS200M4,WXKH187-WSS225M4,WXKH187-WSS22KW,WXKH187-WSS250M4,WXKH187-WSS280M4,WXKH187-WSS30KW,WXKH187-WSS315M4,WXKH187-WSS37KW,WXKH187-WSS45KW,WXKH187-WSS55KW,WXKH187-WSS75KW,WXKH187-WSS90KW,WXKH187-WSSB180M4,WXKH187-WSSB200M4,WXKH187-WSSB225M4,WXKH187-WSSB250M4,WXKH187-WSSB280M4,WXKH187-WSSB315M4,WXKH187-WSSVP180M4,WXKH187-WSSVP200M4,WXKH187-WSSVP225M4,WXKH187-WSSVP250M4,WXKH187-WSSVP280M4,WXKH187-WSSVP315M4,WXKH187-WSSVPB180M4,WXKH187-WSSVPB200M4,WXKH187-WSSVPB225M4,WXKH187-WSSVPB250M4,WXKH187-WSSVPB280M4,WXKH187-WSSVPB315M4。空心軸減速機

KH187減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://zzhhdz.com/product/list-kaxiliejiansuji-cn.html

推薦類似型號：K187減速機
